“Syntégra blends innovation, integrity, and integration to set a new standard of excellence in the commercial door industry. With decades of expertise, we deliver fully integrated, pre-assembled door systems that are functional, adjustable, and ready to install.”
SYNTÉGRA PRODUCTS

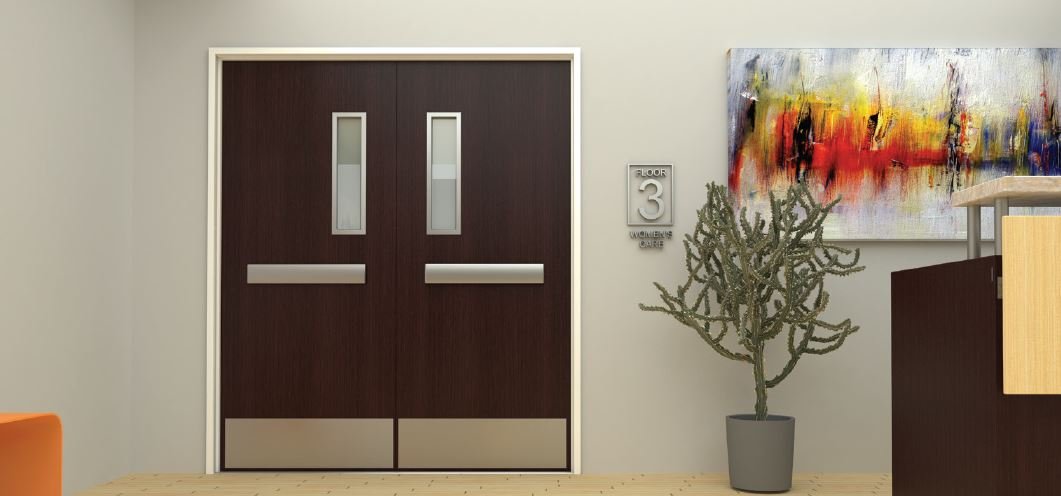

XT SERIES
FLUSH EXIT
DEVICE OPENINGS
The XT Series from Syntégra is the ultimate integrated door system, combining the security of a mortise lockset with the safety of an exit device. Designed to meet the unique needs of each opening, it offers a ‘no compromise’ solution that blends strength, durability, and aesthetic appeal. The near-flush exit device maximizes clear opening width for safe egress while meeting the highest fire and life safety codes. Engineered for the toughest commercial, educational, and industrial environments, the XT Series delivers both performance and style.
Tested Durability
Heavy-wall aluminum construction
Pushbar holds retracted when the door is in the open position, maximizing the clear opening width and limiting damage
Enhanced Security
Patented friction-limiting latch bolt with 7/8″ throw
Available in top latching or top and bottom latching
Exterior lever with anti-abuse clutching
Protected latches and operating mechanisms are concealed within the steel door and sheltered from attack, abuse, or tampering
Versatility
Extensive list of ANSI functions to suit most openings and applications
Access control ready with latch retraction, electrified lever and RX options
Electrical options available in kit-form allowing for future upgrades
Uncompromised Safety
Listed for flush Panic Hardware (UL305) and for fire tests (UL10C) with single-point top latching or top and bottom latching
Pushbar holds retracted when the door is in the open position maximizing the clear opening
Top latching instead of side edge latchbolt and strike for singles and pairs prevents catching on clothing or equipment
Optional antimicrobial coatings available for healthcare, education and other germ-sensitive environments
CleanVue – Simple hygienic release feature allows for full access to the pushbar for sanitizing without disassembly
Unequaled Aesthetics
Minimized pushbar end caps with hidden fasteners provides clean, uninterrupted lines
Pushbar available in architectural and décor-matching finishes
Escutcheon-free levers available in the most popular styles and finishes
Décor Series levers used to make a unique design statement, or to match other locksets used on a project
Optional integrated top strike prep eliminates the need for a surface mounted auxiliary plate
Projection type latchbolt minimizes the top strike view and minimizes the top door “notch” required by others
No floor strikes required means fire ratings without the need for bottom latchbolts
LX SERIES
LEVER OPERATED
The LX Series from Syntégra showcases a commitment to "deeper integration" with a central lock case that accommodates handles and keyed cylinders on both sides. This highly configurable system offers the same functions as traditional locksets, plus advanced features like break-away clutch-protected levers for demanding environments. The sleek design eliminates bulky escutcheons, hiding mechanisms for a clean look. The LX Series also allows independent operation of paired doors without additional hardware, and includes electrical functions for seamless integration with access control and automation systems.
Tested Durability
Solid cast or forged lever handles
Break-away clutch to prevent damage from abuse
Far exceeds industry standards for security, strength, and durability.
Enhanced Security
Patented friction-limiting latchbolt with 7/8″ throw
Available in top latching or top and bottom latching
Levers protected with anti-abuse clutch
Protected latches and operating mechanisms are concealed within the steel door and sheltered from attack, abuse and tampering
Versatility
Extensive list of functions to work with most openings and applications
Access control ready with electrified lever, latch retraction, and RX options
Electrical options available in kit-form allowing for future upgrades
Uncompromised Safety
Listed for fire (UL10C) with single-point top latching or top and bottom latching.
Top latching instead of side edge latchbolt and strike for singles and pairs prevents catching on clothing or equipment
Optional Antimicrobial coatings available for healthcare, education and other germ sensitive environments
Unequaled Aesthetics
Escutcheon-free levers available in the most popular styles and finishes
Optional integrated top strike prep without the need for a surface mounted auxiliary plate
Projection type latchbolt minimizes the top strike view and minimizes the top door “notch” required
by othersNo floor strikes required – Fire ratings without the need for bottom latchbolts
PX SERIES
PUSHPAD OPERATED
The PX Series from Syntégra provides a seamless, single-motion means of egress while maintaining the integrated design of Syntégra door systems. Ideal for applications without a full-length exit device, it shares the same Pushpad profile and integrated lock case as other Syntégra products. With a range of mechanical and electrical options, the PX Series proves that smaller designs can deliver the same high level of functionality.
Tested Durability
Heavy-wall aluminum construction
Pushpad holds retracted when the door is in the open position, maximizing the clear opening width and limiting damage
Enhanced Security
Patented friction-limiting latchbolt with 7/8″ throw
Available in top latching or top and bottom latching
Exterior lever with anti-abuse clutch
Protected latches and operating mechanisms are concealed within the steel door and sheltered from attack, abuse and tampering
Versatility
Extensive functions options to fit most openings and applications
RX request-to-exit (RX) and electrified lever (ELS) options for electronic access controlled openings
Electrical options available in kit-form allowing for future upgrades
Uncompromised Safety
Listed for fire (UL10C) with single-point top latching or top and bottom latching.
Pushbar holds retracted when the door is in the open position maximizing the clear opening
Top latching instead of side edge latchbolt and strike for singles and pairs prevents catching on clothing or equipment
Optional antimicrobial coatings available for healthcare, education and other germ-sensitive environments
CleanVue – Simple hygienic release feature allows for full access to the pushbar for sanitizing without disassembly.
Unequaled Aesthetics
Minimized pushpad end caps with hidden fasteners provides clean, uninterrupted lines
Pushpad available in architectural and décor-matching finishes
Escutcheon-free levers available in the most popular styles and finishes
Optional integrated top strike prep eliminates the need for a surface mounted auxiliary plate
Projection type latchbolt minimizes the top strike view and minimizes the top door “notch” required by others
No floor strikes required means fire ratings without the need for bottom latchbolts
FX SERIES
AUTO LATCHING
FLUSH BOLT LEAF
The FX Series from Syntégra combines sleek design with advanced functionality. Featuring an Auto-Latching Flush Bolt system mounted on the top of the inactive door leaf, it automatically locks into the frame header when the doors close. Unlike traditional flush bolts, the FX Series latches securely without needing a coordination device, ensuring reliable operation regardless of the door closing sequence. The bolt automatically retracts when the active door is opened, allowing for easy ingress and egress.
Automatic unlatching when active door is opened
Curved lip T-Strike supplied
630 satin stainless faceplate – Field Paintable
3-hour fire rating for positive pressure (UL10C) single-point top latching with auxiliary fire pin. Maximum leaf size 4′ x 8′
ANSI/BHMA Type 25 – Automatic Flushbolt
Unequaled Aesthetics
No operating hardware on the door faces
Eliminates visible door coordination devices mandatory with traditional automatic flushbolts
Top latching only with no requirement to latch into the floor to meet the fire ratings
Field paintable faceplate to blend with the door surfaces
Features
Used in the inactive leaf of a pair of doors
Used in conjunction with XT, PX, and LX door systems
3/4″ Throw – stainless steel latch bolt
Latch bolt projects upon trigger contact with the active door leaf
Self-latching regardless of the door closing sequence – No coordinator required!
LEVER OPTIONS
Compatible with Syntégra XT, PX, and LX Door Systems.
01 Square Lever
02 Tubular Lever
03 Curved Lever
HARDWARE FINISH OPTIONS
629 Polished Stainless Steel
630 Satin Stainless Steel
613E Dark Bronze
693 Black Powder Coating
605E Polished Brass
606E Satin Brass
Antimicrobial Coatings are available for healthcare, education and other germ sensitive environments.
LEVER DÉCOR SERIES
Compatible with Syntégra XT, PX, and LX Door Systems.
Syntégra’s ‘by design’ commitment extends to al aspects of the door system. We are constantly refining and expanding our offering to include functional and aesthetic benefits that building owners truly appreciate.
In keeping with this commitment, we have partnered with Frascio International, the premiere designer of architectural levers, to adapt their extensive line of over 100 levers styles, to work in harmony with all Syntégra door systems. The levers shown are only a small sampling of the broader offering available.
